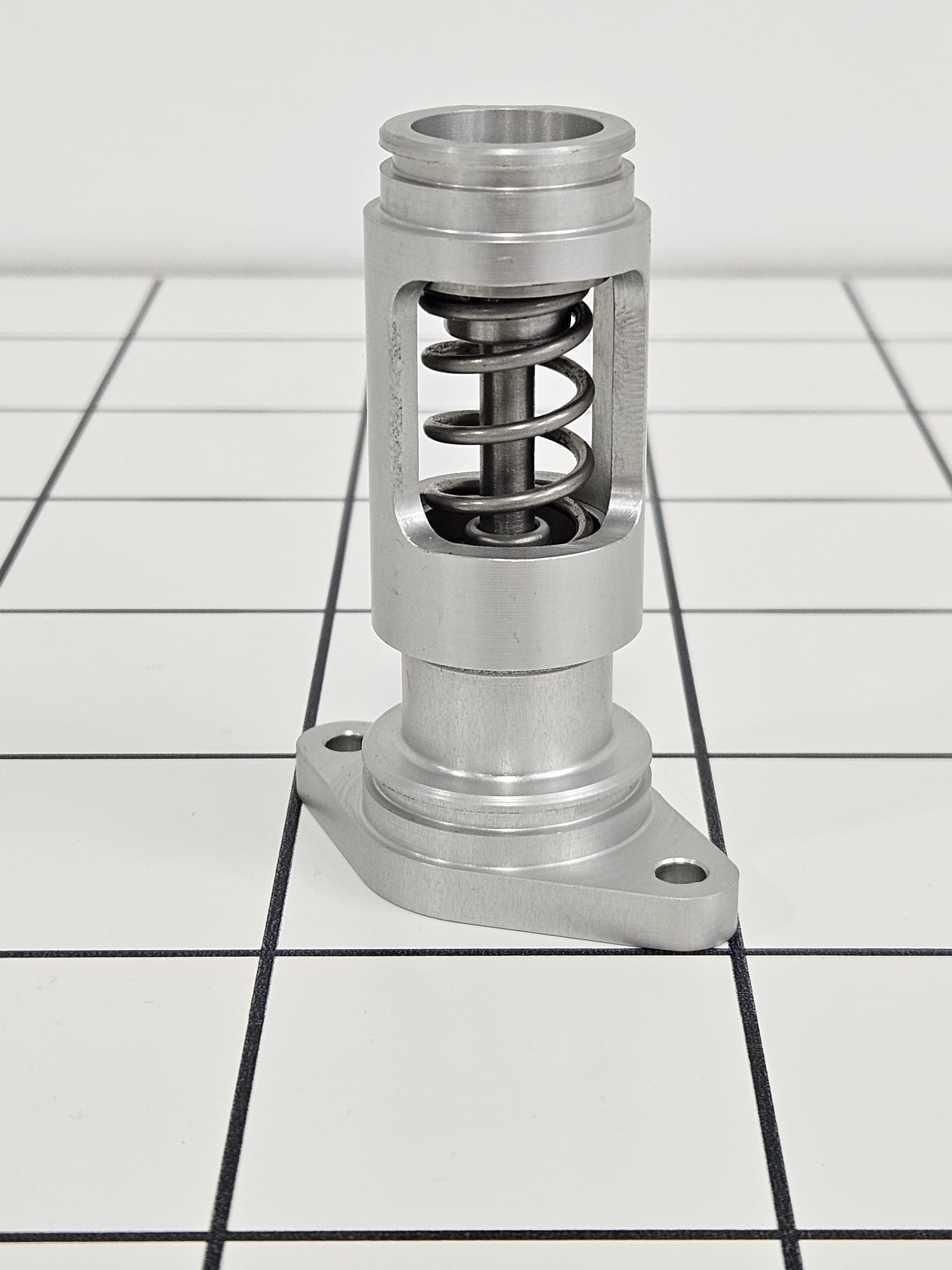

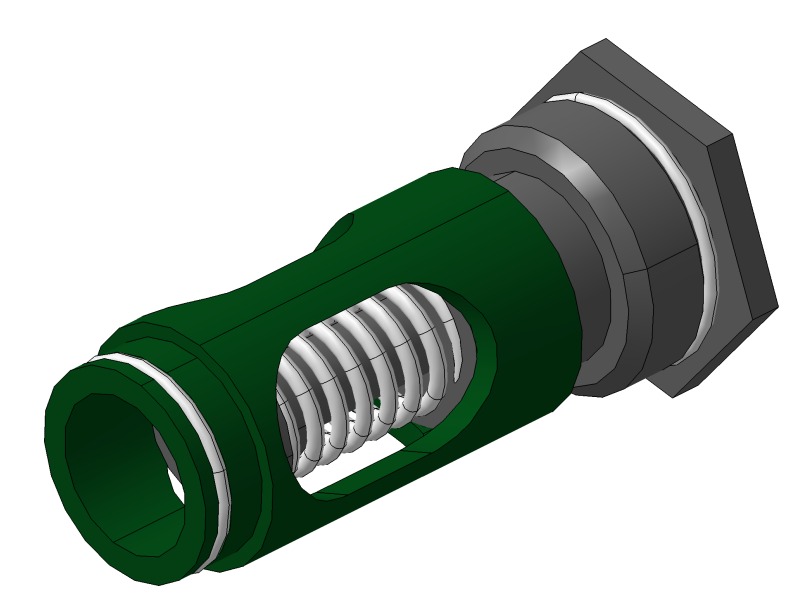

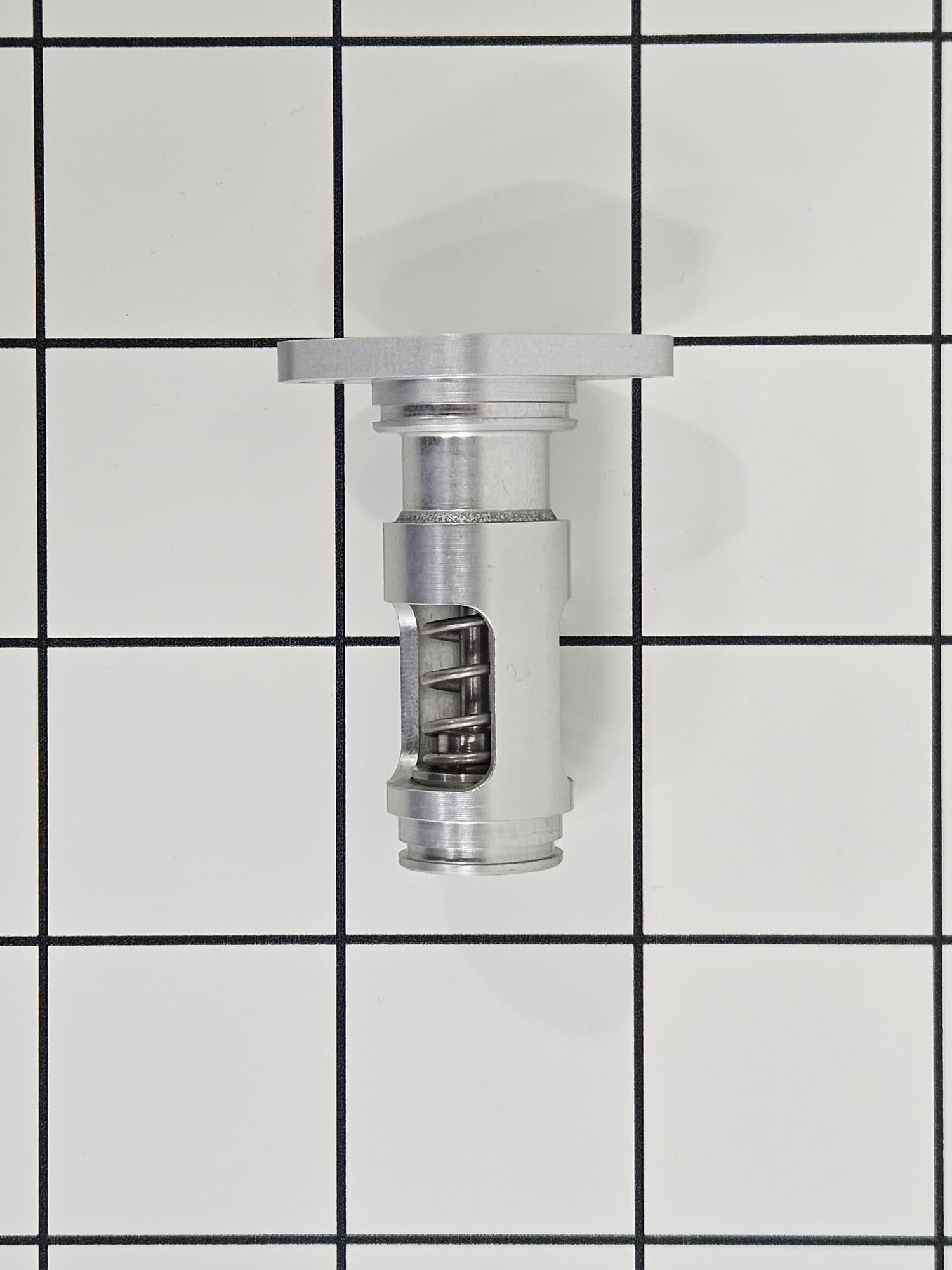

Filter By-pass Valves for Aerospace Industry

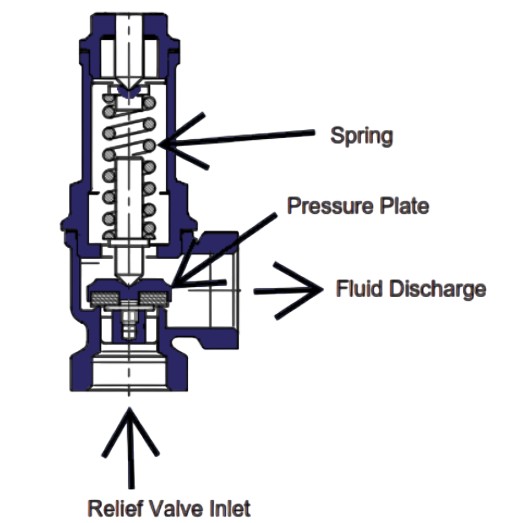

We are developing advanced filter by-pass valves specifically designed for the aviation industry. Oil bypass valves play a critical role in ensuring the uninterrupted operation of aircraft systems by allowing fluid to bypass the filter when it becomes clogged or experiences high pressure, preventing engine damage or system failure. Our filter by-pass valves are engineered for maximum reliability and performance, ensuring that even in extreme conditions, aircraft maintain optimal functionality. The specifics can be optimized based on their intended applications.

Pressure Valve:

  • Cracking pressure in the range of 100 kPa - 500 kPa,
  • Optimized for low pressure drop,
  • Lightweight and compact design with aluminum body,
  • Operating temperature range of -50°C to +150°C.

Thermal Pressure Valve:

  • Adjustable opening/closing mode in the range of -40°C to 100°C,
  • Cracking pressure in the range of 100 kPa - 500 kPa,
  • Optimized for low pressure drop,
  • Lightweight and compact design with aluminum body,
  • Operating temperature range of -50°C to +150°C.
